    503KT1608T-1P

    503KT1608T-1P Semitec 50K Ω±1% 4055K±1% SMD 0603 High accuracy, NTC Thermistor temperature Sensor


    The KT series thermistor features high accuracy with tight resistance and B-value tolerances of (±1%). The KT thermistor is a high performance, high reliability chip thermistor which complies with IEC standards (dimensions: 1005, 1608) and JIS standards. SEMITEC’S KT thermistors are fully compliant with RoHS DIRECTIVE2011/65/EU.


    Applications

    Office automation equipment, communication equipment, IT equipment, mobile devices, battery packs, LCDs, hybrid ICs, AV equipment

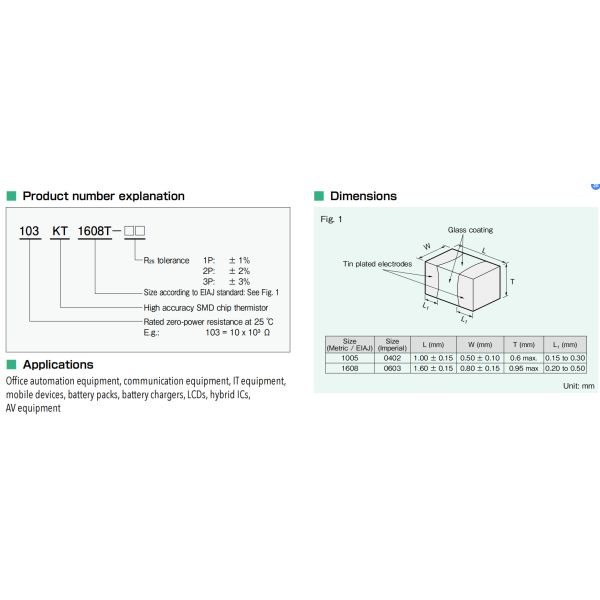

    Dimensions

    503KT1608T-1P

    Rating

    Part No.R25※1R25ToleranceB-value※2Dissipation factor
    mW/℃
    Thermal time constant s※3Rated power
    mW at 25℃
    Operating Temperature range
    103KT1608T10kΩ±1%3435k±1%approx. 0.9approx. 54.5−40〜+125
    503KT1608T50kΩ4055k±1%
    104KT1608T100kΩ4390k±1%
    103KT1005T10kΩ3435k±1%approx. 0.7approx. 2.23.5

    ※1:Rated zero-power resistance at 25℃
    ※2:B-value determined by rated zero-power resistance at 25℃ and 85℃
    ※3:Time required to reach 63.2% of temperature difference. Measured in still air.
